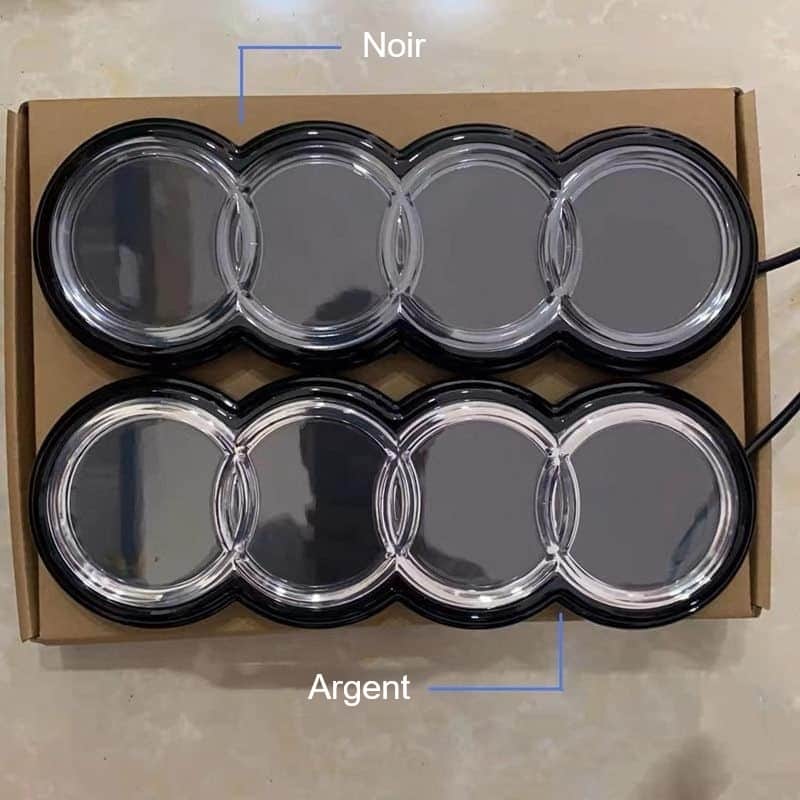

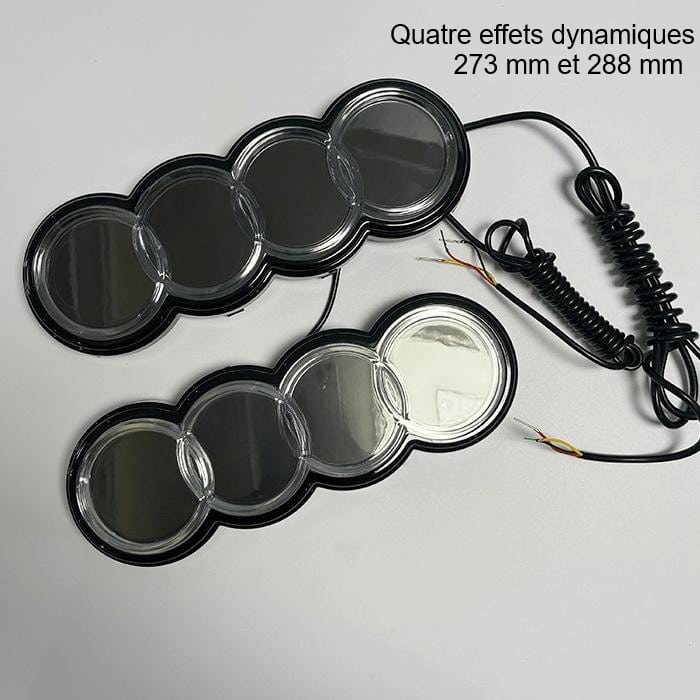

Illuminated LED Audi S8 Grille Emblem 2007-2022

Useful tools

• Plastic trim removal kit
• Multimeter
• Terminals and heat-shrink tubing
• Isopropyl alcohol

Fitting steps

1. Prepare the power supply

   Locate a protected 12 V power supply (parking lights or after ignition) on your Audi S8 (2007-2022) and the cable route.

2. Remove the original emblem

   Turn off the ignition and disconnect the battery. Remove the original emblem (adhesive or pins); on a grille, it often has to be removed.

3. Clean and degrease

   Wash the fitting area, then degrease it with isopropyl alcohol. Let it dry completely.

4. Stick on the illuminated emblem

   Dry-fit the illuminated emblem, peel the film off the 3M tape, then press firmly for 30 seconds over the whole surface.

5. Connect the power

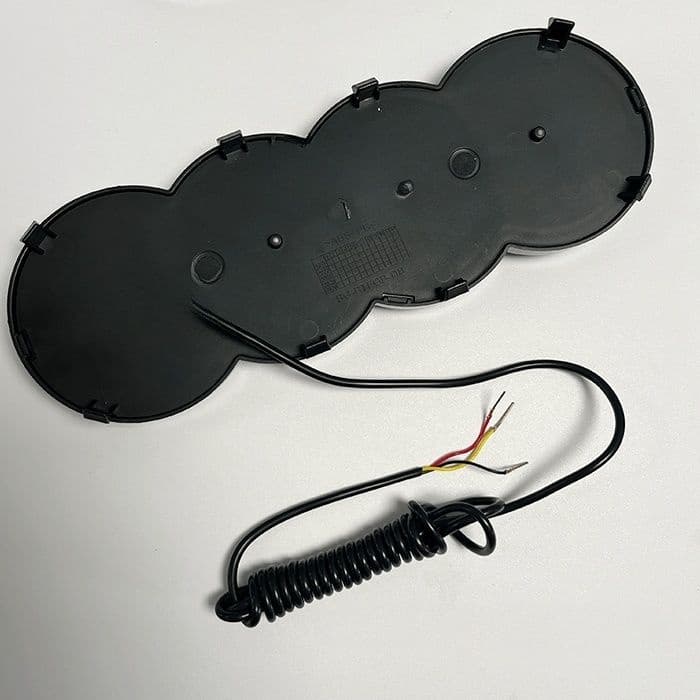

   Connect the positive wire to a fused 12 V supply and the ground wire to a metal point. Insulate every connection.

6. Test the lighting

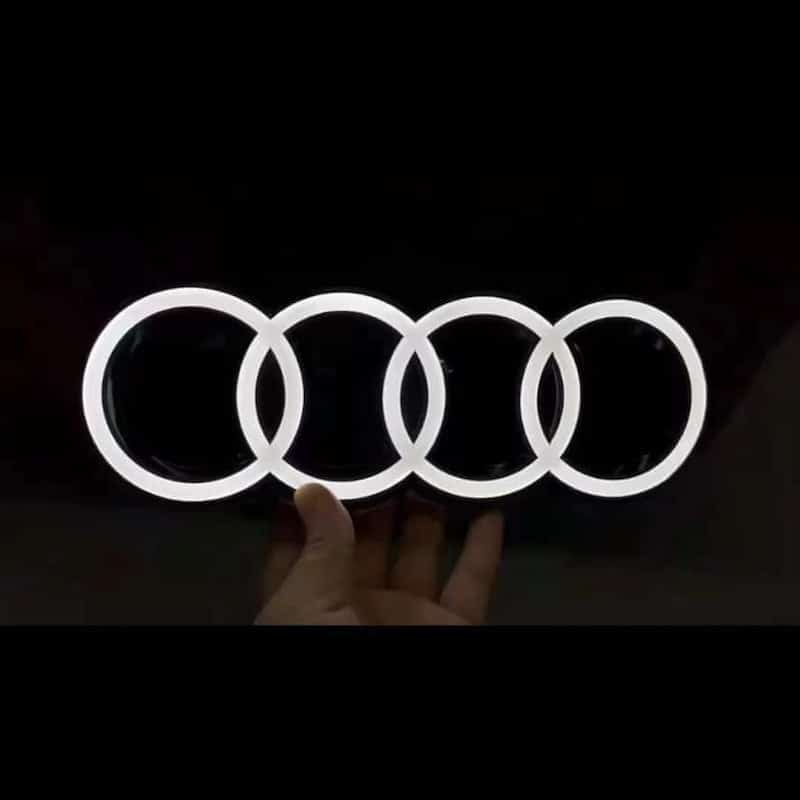

   Turn on the ignition and the lights: the emblem must light up steadily.

• Check the regulations: an illuminated front logo may be banned on public roads depending on its color.
• Fit above 59 °F (15 °C) and avoid washing for 24 h: the adhesive reaches full strength after that time.
