Mercedes LED Turn Signals
Dynamic LED turn signals Mercedes: A-Class W176, B-Class W246, C-Class W204 W205, CLA C117, GLA X156. Sequential sweeping, CANbus, free shipping.
- Ships in 48 hours
- 2-year legal warranty
- Free fitment advice
Mercedes dynamic LED turn signal: sequential sweeping
The dynamic turn signal — which sweeps from the inside out instead of flashing as a single unit — has appeared on recent Mercedes models and high-end trims only. This collection allows you to add it to a car that didn't come with it from the factory, by replacing the original mirror turn signals or rear turn signals.

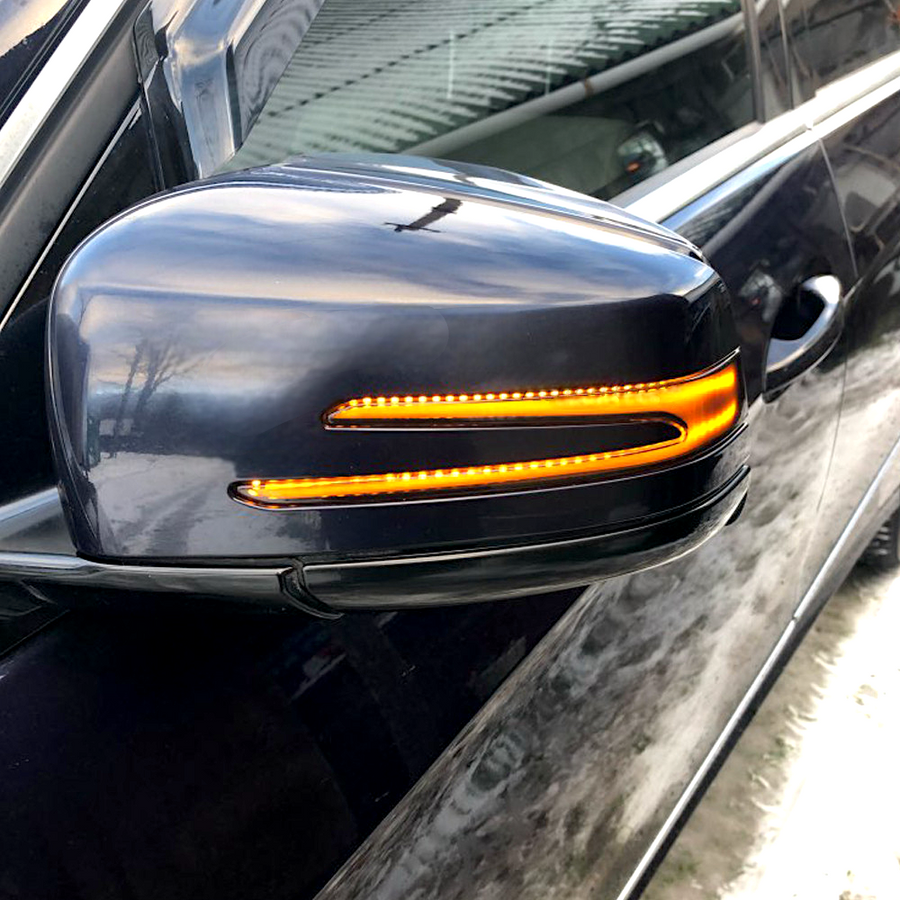

The most popular family is the sweeping LED mirror turn signals. We cover the A-Class W176 and W177, the B-Class W246 in the sequential version, the C-Class W204 (2007-2014) and W205, the E-Class W213, the CLA C117 (2013-2018), the GLA X156 (2014-2020), the GLC W253 and the V-Class Viano W447. The original part clips out of the mirror, and the new one takes its place using the same connector.

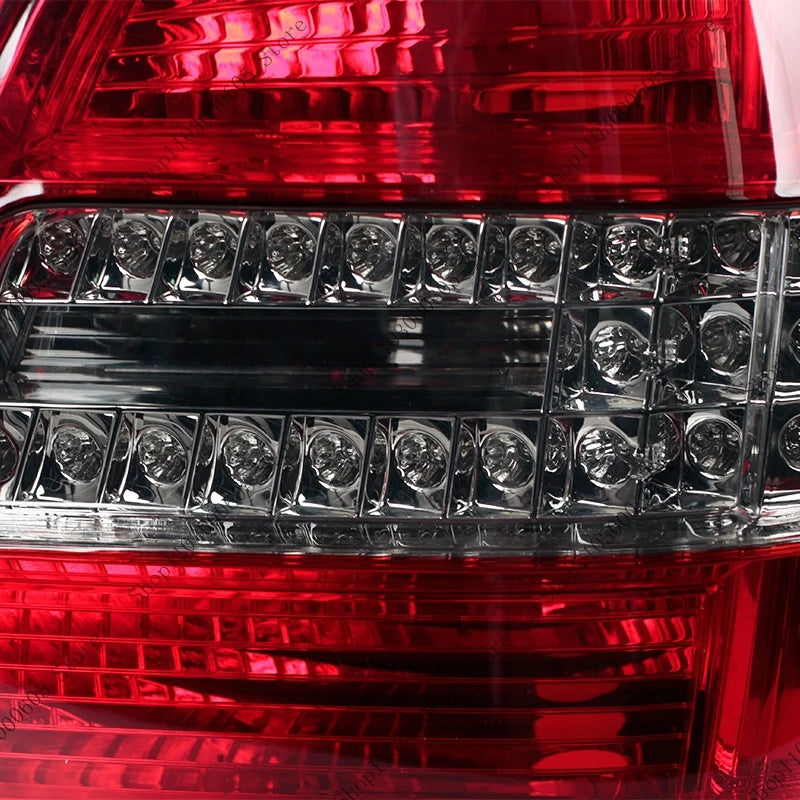

The second family includes the LED rear turn signals: A-Class W177 (A 180, A 200), GLK W204 X204 (2008-2012) and GLA W156 (GLA 200, 220, 260). These are replacement units that fit into the original housing, with the same cutout and mounting.
Finally, youngtimer enthusiasts will find the classic-style side turn signal lights for the W123, which retain the period shape with a modern LED light source, making them much more visible from a three-quarter front view.
Technically, these modules generally include a CANbus resistor to prevent the faulty bulb message and characteristic rapid flashing. Check this point on the product page: on Mercedes equipped with lighting monitoring, this is what makes the difference between a successful installation and a permanent warning light on the instrument panel.
Compatible with the entire Mercedes range
Mercedes LED turn signals are parts developed generation by generation, as the mirror housing and connector change from one model to another. Find the chassis code on the registration document or on the door pillar sticker, then compare it with the year range indicated on the product page.
Compatible models: A-Class W176 W177, B-Class W246, C-Class W204 W205, E-Class W213, CLA C117, GLA X156 W156, GLC W253 X253, GLK W204 X204, V-Class and Viano W447, W123.
Why choose this collection?
- Sequential sweeping: the sweeping effect of high-end trims, added to a car that didn't have it.
- Original connector: the modules clip into place of the factory part, without cutting any wires.
- CANbus compatibility: integrated resistor on most references, without a bulb warning light on the instrument panel.
- Free shipping: a modern light signature for just a few dozen euros.
Frequently asked questions
Is a dynamic turn signal allowed in France? Yes, provided that the module bears a European approval marking, that the color remains orange, that the flashing frequency is compliant, and that both sides are identical. It is equipment fitted from the factory on many recent cars.
How to change the mirror turn signal without breaking the housing? Fold the mirror, slide a plastic spatula into the upper gap of the cover, and gently unclip it. The module then comes out through the outside, with a tab connector. No metal tools, under penalty of scratching the paint.
My turn signal flashes too fast after installation, what should I do? This is the classic symptom of too low power consumption detected by the computer. A module with an integrated CANbus resistor is needed, or the addition of a resistor in parallel. Our product pages specify this point for each reference.
Frequent searches: Mercedes A-Class turn signal • Mercedes B-Class turn signal • Mercedes C-Class turn signal • Mercedes W204 turn signal • Mercedes W202 turn signal • Mercedes 190 turn signal • Mercedes W124 turn signal • Mercedes W176 mirror turn signal • Mercedes CLA C117 dynamic turn signal • Mercedes GLA X156 LED turn signal • Mercedes GLK X204 rear turn signal • Mercedes W246 sequential turn signal.
